TC::MT::Message Class Reference
[Multithreading]

Base class of a message which can be send from one thread to another thread. More...

#include <TCMTMessage.h>

Inheritance diagram for TC::MT::Message:

[legend]

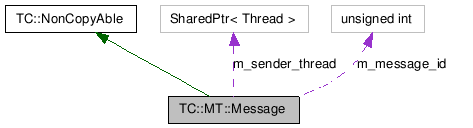

Collaboration diagram for TC::MT::Message:

[legend]

List of all members.

Public Types
enum	MsgIDs {   MSG_ID_QUIT = 0x00000001,   MSG_ID_START = 0x00000002,   MSG_ID_USER_START = 0x0000ffff,   MSG_ID_UNKNOWN = 0xffffffff }
	Predefined message ids. More...
enum	TimeOut {   TIMEOUT_NO = 0,   TIMEOUT_INFINITE = 0xffffffff }
	Predefined timeout values for getting messages. More...
enum	ReturnValue {   MSG_RECEIVE_FAILED = 0,   MSG_RECEIVE_TIMEOUT = 1,   MSG_RECEIVED = 2,   MSG_QUIT_RECEIVED = 3 }
	Return values of the Get message methodes. More...
Public Member Functions
	Message (uint32 message_id)
	Create empty message.
virtual	~Message ()
	Destruct message.
uint32	GetMessageId () const
	get the id of the message
ThreadPtr	GetSenderThread ()
	get the sender thread of the message
Private Attributes
uint32	m_message_id
	global id of the message
ThreadPtr	m_sender_thread
	The sender thread.

---

Detailed Description

Base class of a message which can be send from one thread to another thread.

Definition at line 65 of file TCMTMessage.h.

---

Member Enumeration Documentation

enum TC::MT::Message::MsgIDs

Predefined message ids.

Enumerator:

MSG_ID_QUIT	Message id for quitting a thread.
MSG_ID_START	Message id for quitting a thread.
MSG_ID_USER_START	Message id at which user specified massage ids should start.
MSG_ID_UNKNOWN	Undefined message id, for getting all messages.

Definition at line 69 of file TCMTMessage.h.

enum TC::MT::Message::TimeOut

Predefined timeout values for getting messages.

Enumerator:

TIMEOUT_NO
TIMEOUT_INFINITE

Definition at line 78 of file TCMTMessage.h.

enum TC::MT::Message::ReturnValue

Return values of the Get message methodes.

Enumerator:

MSG_RECEIVE_FAILED
MSG_RECEIVE_TIMEOUT
MSG_RECEIVED
MSG_QUIT_RECEIVED

Definition at line 85 of file TCMTMessage.h.

---

Constructor & Destructor Documentation

TC::MT::Message::Message

(

uint32

message_id

)

Create empty message.

virtual TC::MT::Message::~Message

(

)

[virtual]

Destruct message.

---

Member Function Documentation

uint32 TC::MT::Message::GetMessageId

(

)

const [inline]

get the id of the message

Definition at line 98 of file TCMTMessage.h.

ThreadPtr TC::MT::Message::GetSenderThread

(

)

[inline]

get the sender thread of the message

Definition at line 100 of file TCMTMessage.h.

---

Member Data Documentation

uint32 TC::MT::Message::m_message_id [private]

global id of the message

Definition at line 104 of file TCMTMessage.h.

ThreadPtr TC::MT::Message::m_sender_thread [private]

The sender thread.

Definition at line 106 of file TCMTMessage.h.

---

The documentation for this class was generated from the following file:

• TCMTMessage.h
